Injectors

SSD-UD-3 on WS-650Hz-23NPP
  • For precise chemical flow control
  • Many types of spray heads available
  • Custom requirement? Please contact the factory, we can help!

 Fan Spray Injector

 Fan Spray Injector

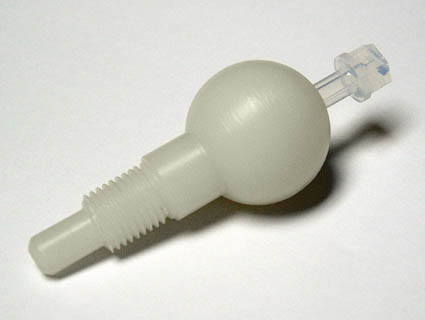

 (Assembly P/N 1004 0154 shown):
 Fan Spray Injector

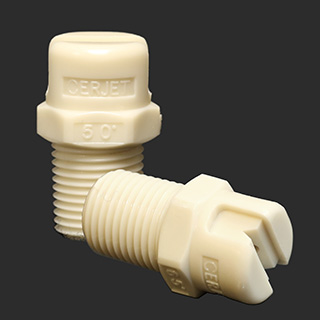

 Spray head P/N 6200 0090 Flow data
(standard spray head)

Operating Pressure
PSIG
Flow Rate
(g / min)
Flow Rate
(l / min)
Spray angle
5 .05 .19
10 .068 .258 21°
15 .083 .315
20 .095 .36 41°
30 .118 .447 49°
35 .125 .48
40 .13 .51 55°

Spray head P/N 6200 0038 Flow data
(higher flow, wider pattern - screw-in replacement)

Operating Pressure
PSIG
Flow Rate
(g / min)
Flow Rate
(l / min)
Spray angle
5 .163 .618
10 .233 .883 90°
15 .278 1.054
20 .314 1.19 99°
30 .383 1.452 102°
35 .417 1.58
40 .463 1.75 104°

 Higher Flow Flood Injector

 Flow data
(Custom Orifice Sizes Available)

Part No.
/Orifice
PSIG/Flow Rate
(l / min)
10 PSIG/Flow Rate
(l / min)
15 PSIG/Flow Rate
(l / min)

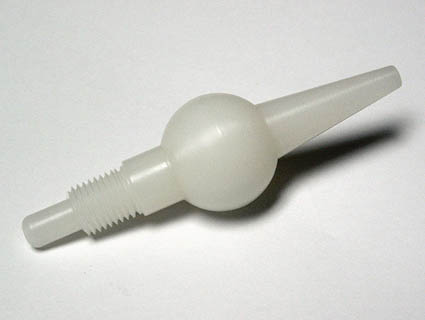

1001 0221 / 0.125" (3 mm) 1.27 1.93 2.51
1001 0226 / 0.087" (2.2 mm) 0.86 1.39 1.85
1001 0227 / 0.062" (1.6 mm) 0.52 0.78 1.02

 Lower Flow Fan Spray Injector

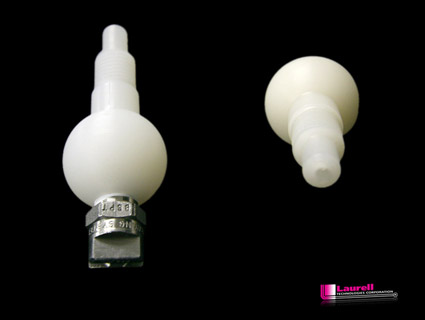

(assembly P/N 1004 0904 shown): NOTE: material being dispensed must be compatible with 316 series Stainless Steel



 Flow data

Operating Pressure
PSIG
Flow Rate
(g / min)
Flow Rate
(l / min)
Spray angle
20 0.02 0.075 47°
30 0.03 0.11 65°
40 0.03 0.11 <75°
60 0.04 0.15 <75°
